GNSS Core Technology Product Summary Sheet

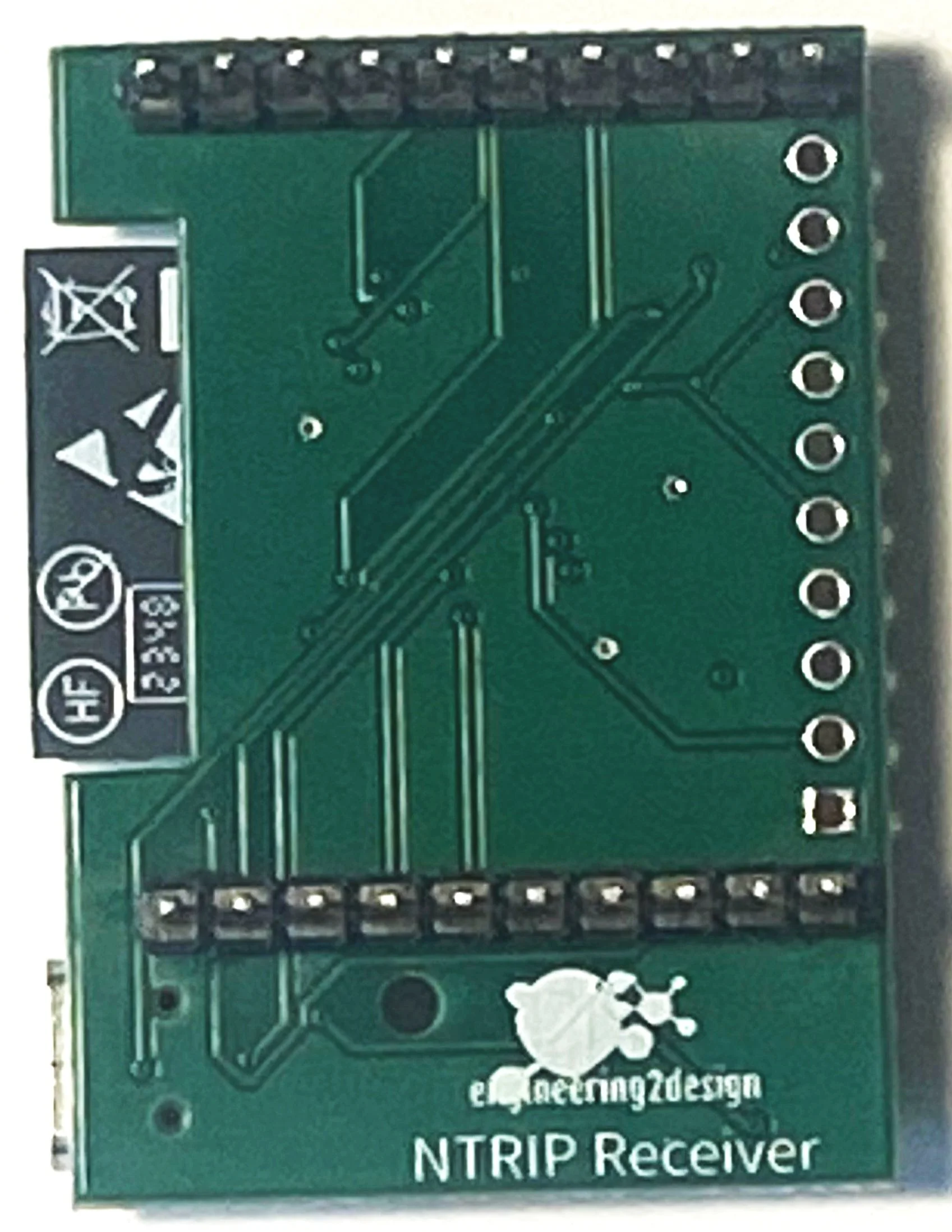

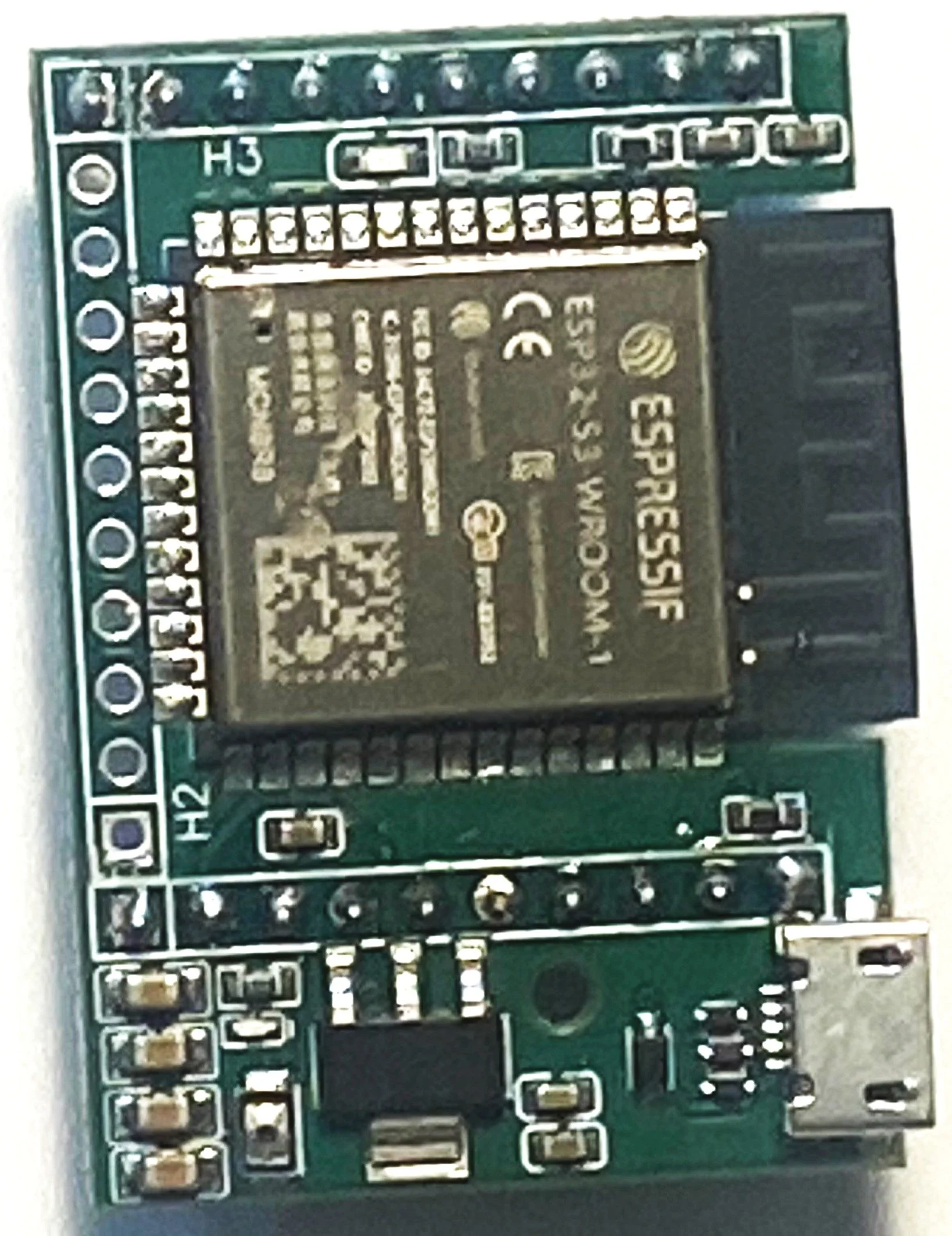

NTRIP Module
Small, low power PCB to translate correctional data from a NTRIP Caster to a RTK capable GNSS receiver.
Inter-board Connections made via 2 standard 10-pin 2.54 mm headers.
Connection to NTRIP Caster via Wifi
Connection to GNSSS Receiver via UART
Vin max 3.3V
Vout max 3.3V
I max 5ma
RTCM 3.3 Protocol
Inter-board Connections made via 2 standard 10-pin 2.54 mm headers.
Local USB port available for configurations and control*
GNSS Antennae connection options, SMA or ufl
BlueTooth BLE for configurations and control**
Wifi for advanced configurations**
*USB messaging definitions available upon request. Customization for your application available
**messaging definition available upon request. Customization for your application available
Power inputs
4.1 VDC to 12.0 VDC or
3.3VDC, regulated
Configurations
Through device’s own web page via Wifi
Parameters saved to non-volatile memory.
Size
LxWxH = 40mm x 30mm x >5mm
GNSS Board - Standard Precision
Small, low power PCB that is a self contained GNSS module that provides that provides location and navigation information
Powering Options:
4.1 VDC to 6.0 VDC
3.3VDC, regulaged
Single Cell Lithium-Poly Battery via JSTPH male connector
500 ma charger with over-charge protection
added circuitry for over-discharge protection
Size
LxWxH = 65mm x 38mm x 8mm
GNSS Board - High Precision
By simply attaching the NTRIP Module to the GNSS Board’s 20-pin header, you will instantly have a high precision GNSS device with accuracy down to 2 cm.
Size
LxWxH = 65mm x 38mm x 14mm
